Precision CNC Milling & Welding of a Full Size Railroad Locomotive Engine Training Cutaway

Precision CNC Milling & Welding of a Full Size Railroad Locomotive Engine Training Cutaway

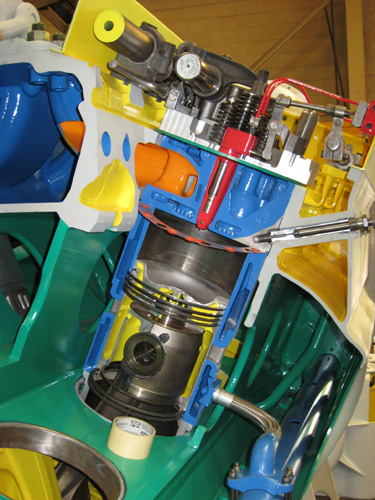

At McCorkle Machine & Engineering we are prepared to take on almost any fabrication project, from the simple to the unusual. This fabrication of a full-sized railroad locomotive engine training cutaway project fell under the unusual projects category. Supplied with pictures from the customer of a similar but simpler prime mover cutaway training aid, we worked with an existing locomotive prime mover that was 10' long by 4' wide by 7' high and weighed 5,000 lbs. Our engineering and design team planned out the horizontal milling, welding, and cutting to make the cutaway precise and accurate. Detail finishing included cleaning and painting so that this cutaway was suitable for a classroom situation.

We are a full-service machine shop that can handle any job, no matter the size or complexity. We strive to provide our customers with the service that can meet almost any requirement. To learn more about this prime mover cutaway training aid, please contact us or see the table below.

Request a Quote



Precision CNC Milling & Welding of a Full Size Railroad Locomotive Engine Training Cutaway

Product Description

This is a training model of a full size railroad locomotive engine.

Precision CNC Milling & Welding Capabilities Applied/Processes

Primary:

  • Horizontal Milling
  • Fabrication
  • Engineering/Design

Secondary:

  • Welding/Cutting
  • Detail Finishing

Equipment Used to Manufacture Part

  • Horizontal Mill
  • Weld Shop

Overall Part Dimensions

  • Length: 10'
  • Width: 4'
  • Height: 7'
  • Weight: 5,000 lbs.

Tightest Tolerances

  • Fit & Finish:
    • Suitable for a class room training model

Material Used

Existing locomotive prime mover

Material Finish

Cleaned and painted

Industry for Use

Railroad Industry

Delivery / Turnaround Time

About 8 weeks

Delivery Location

Atlanta, Georgia

Standards Met

  • Only pictures of a similar but simpler project.
  • Supplied by customer

Product Name

Prime Mover Cutaway Training Aid

We have the expertise and the precision necessary to do even the most demanding job. But along with our extensive experience, we still possess enough youthful enthusiasm and innovation to keep doing great things for our customers. McCorkle Machine & Engineering is in business to do quality work. Our machinery and parts are not only designed to work, but work to perfection.
